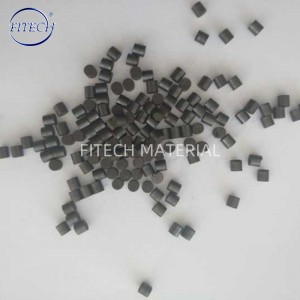

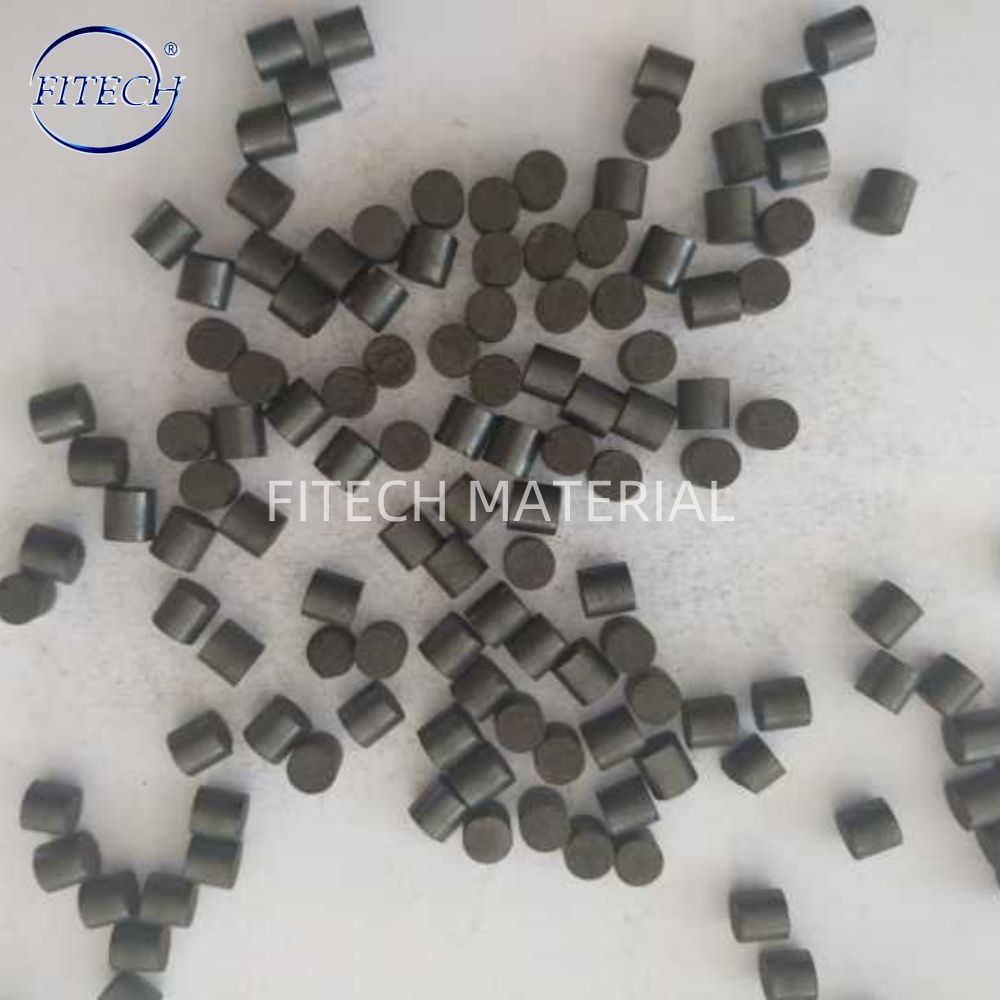

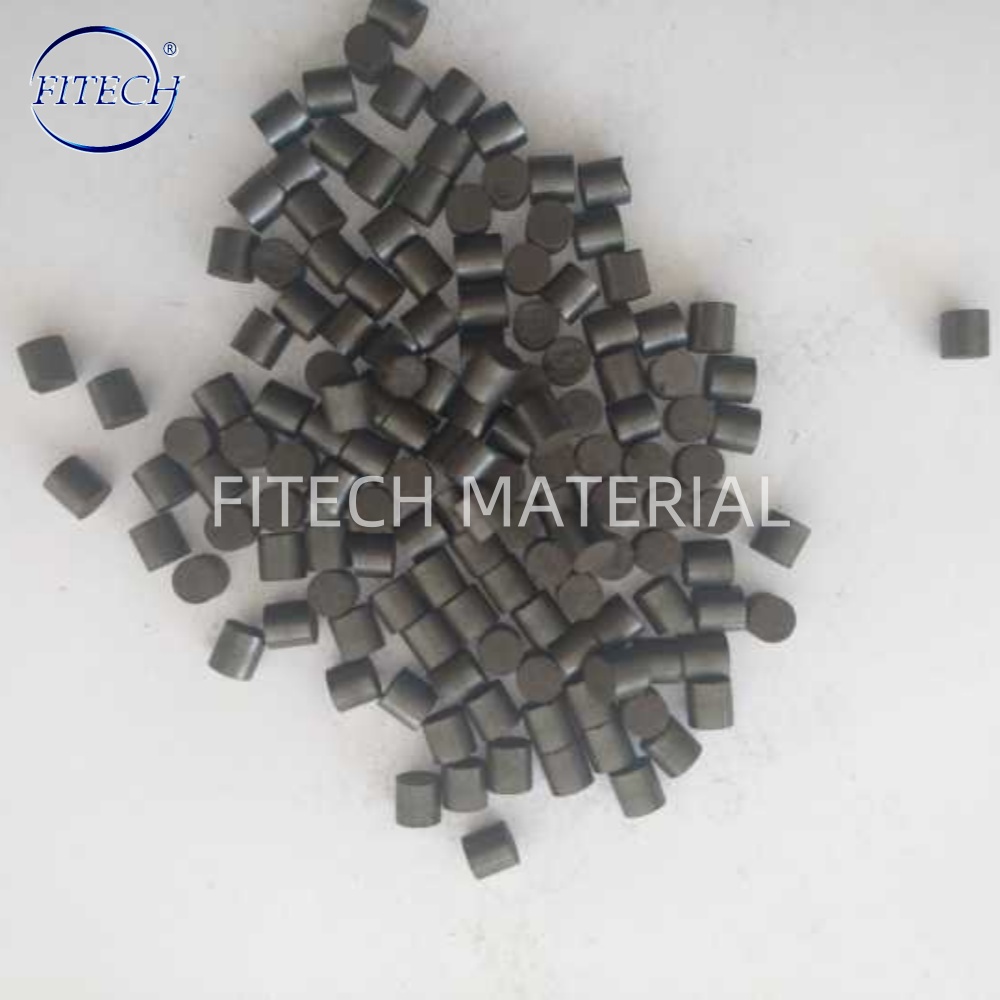

New Type of Decomposition Catalyst for Hydrogen Production
Basic information:
It is a new type of AN decomposition catalyst for hydrogen production with nickel as the active component, alumina as the main carrier and special additives. It is mainly used for AN decomposition hydrogen production plant. It has stable performance, good activity and high strength.
Specification:
Physical and chemical properties:
| item | Index |
| Geometric dimension: (outer diameter ×height ×inner diameter ) | 19 × 19 × 9 (mm) |
| Bulk density: Kg/L | 0.9~1.0 |
| NiO content: ≥ wt% | 14.00 |
| Al2O3+additives : wt% | The balance |
| loss on ignition : ≤ wt% | 20 |
| Radial crushing strength of particles (average), N/ p | ≥ 300 |
| the percentage of low strength particles(the percentage of below 180N/particle) | ≤5.0% |
| Heat resistant index | No adhesion and fragmentation occurs after calcination at 1300ºCfor 2 hours |
| Heat resistant properties: | It can run in 1200ºC for a long time,no melting, no shrinkage, no deformation,Stable structure and good strength in 1400ºC high temperature . |
Operating conditions:
| Item | Index |
| Pressure: | 0.01Mpa - 0.10MPa |
| Temperature: | 750ºC-850ºC |
| AN space velocity: | 350 hr-1 |
| AN decomposition rate: | 99.99%(min) |
Application:
Catalysts are packed in iron drums lined with plastic bags.The net weight is 50 kg/drum .There are clear logo,including the production name, model, specification, weight (kg), and the name of production plant, etc. During transportation, it should be moisture-proof, collision and fall proof, and rolling handling is prohibited.
