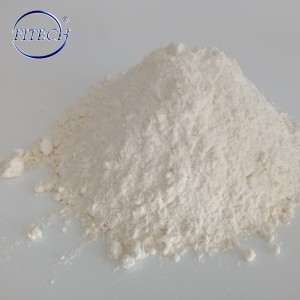

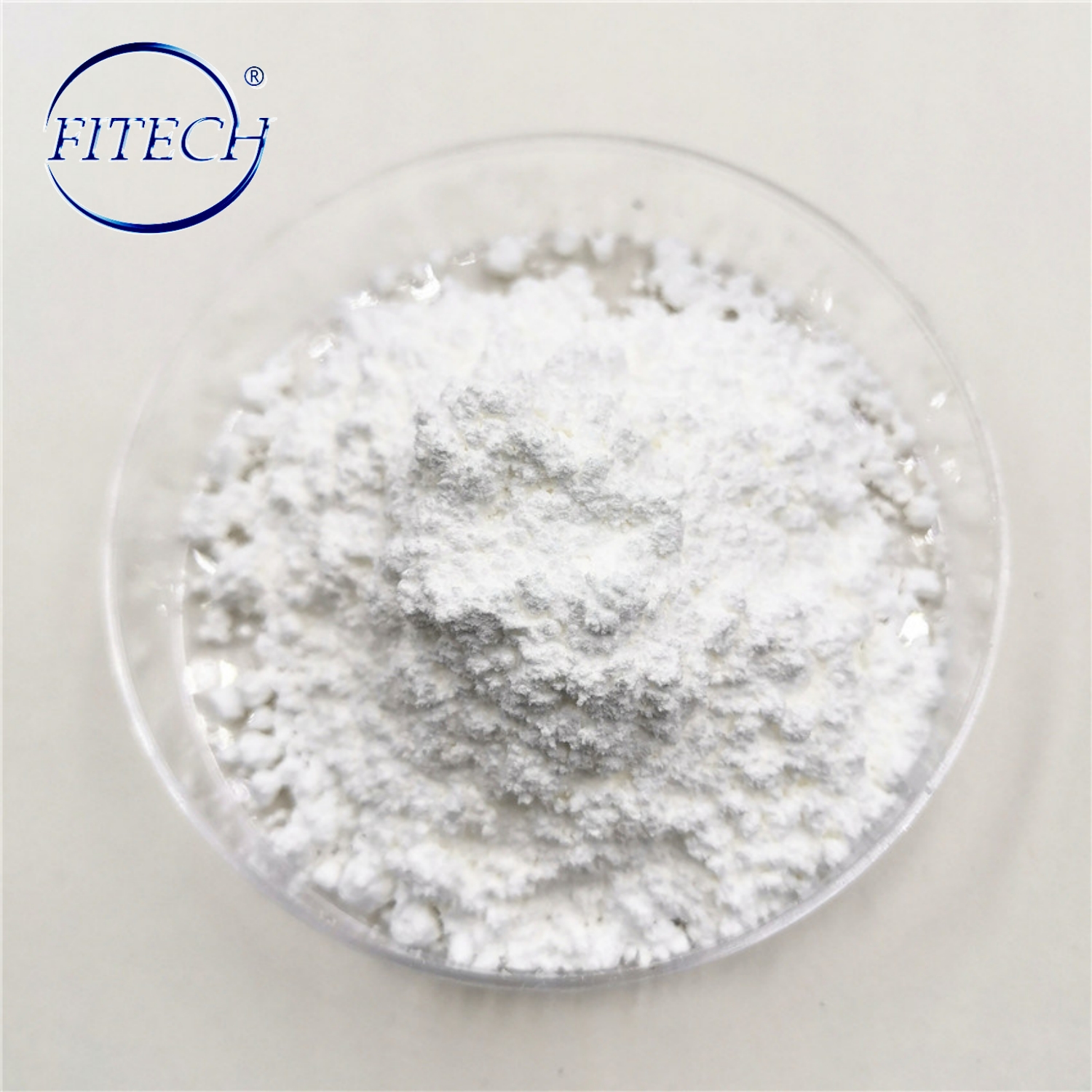

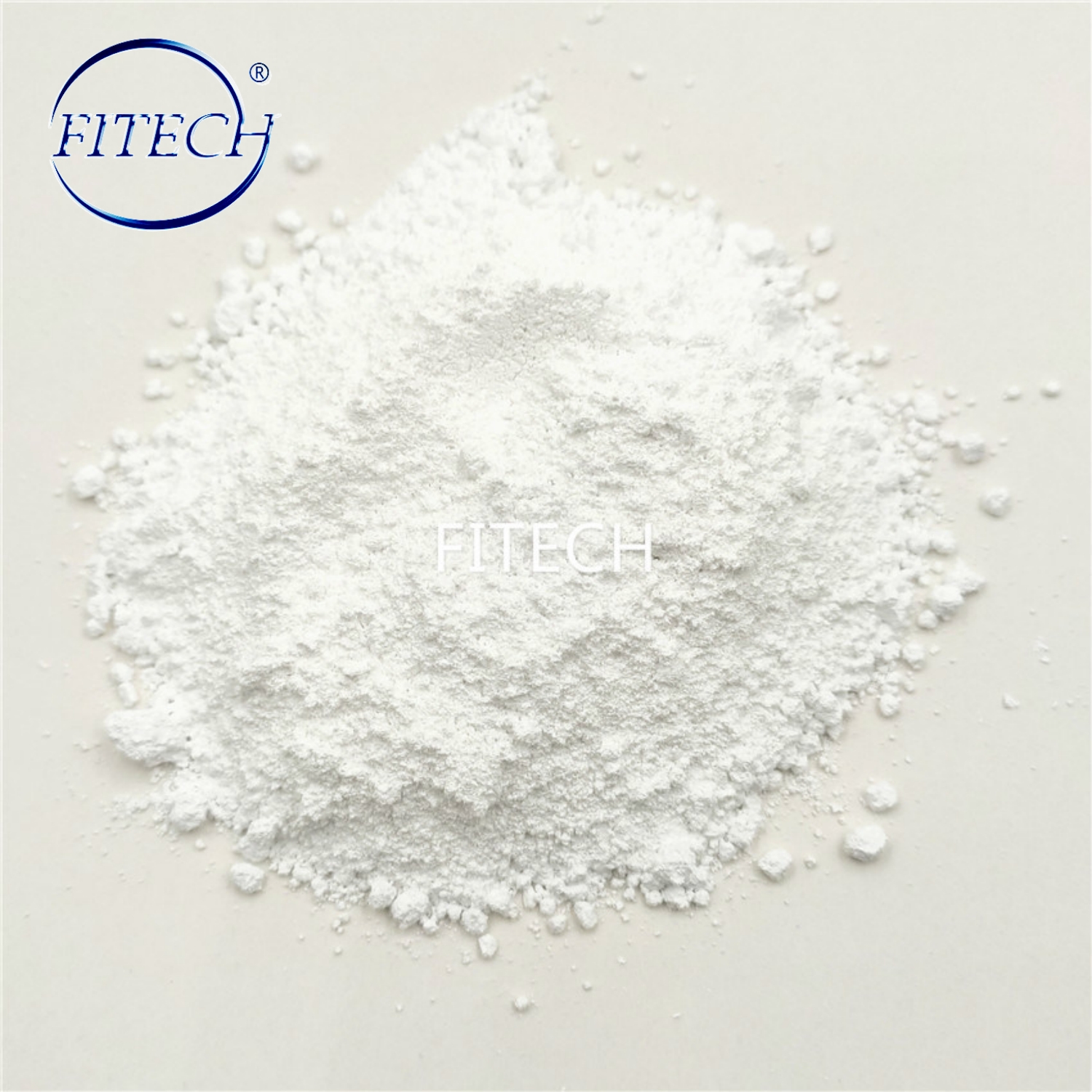

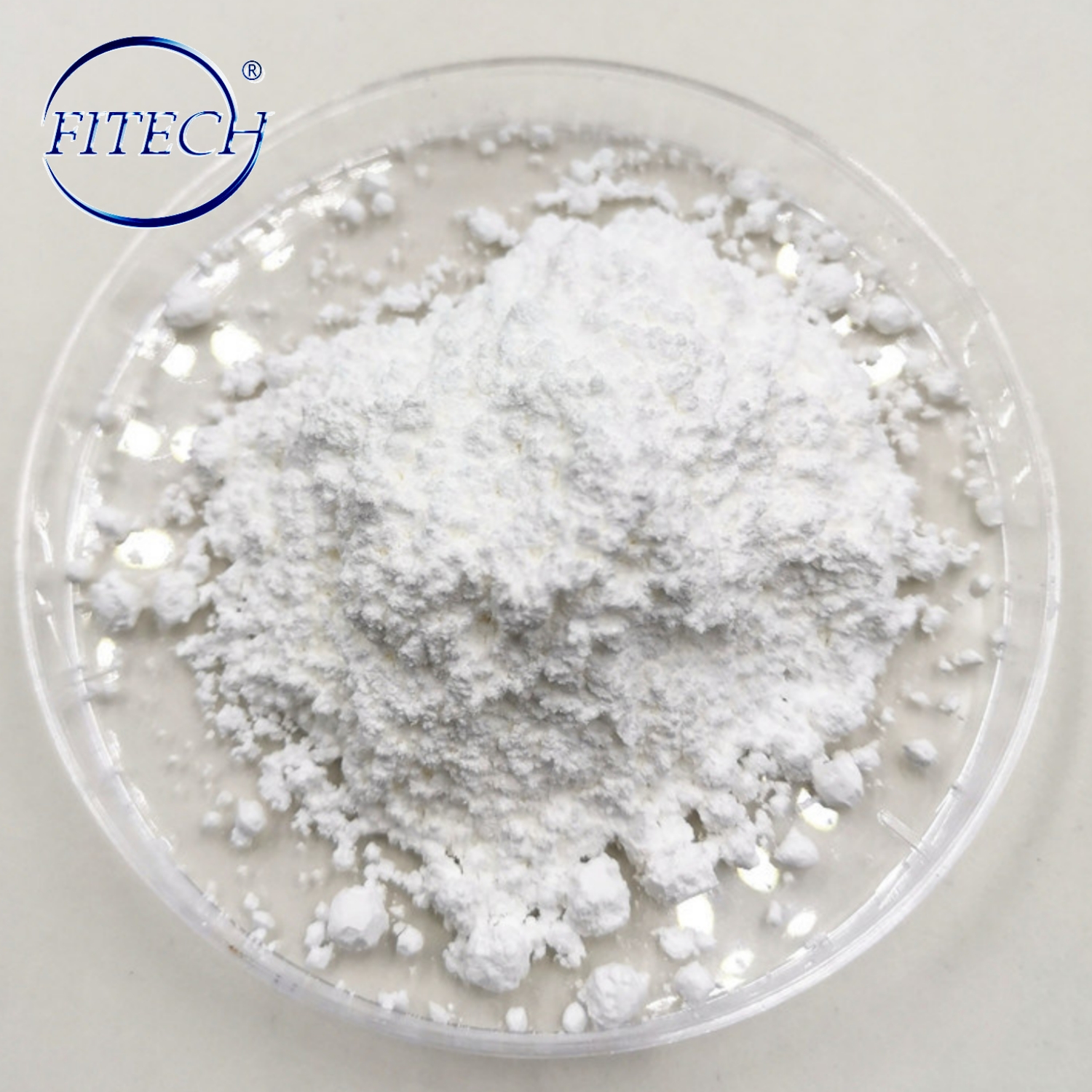

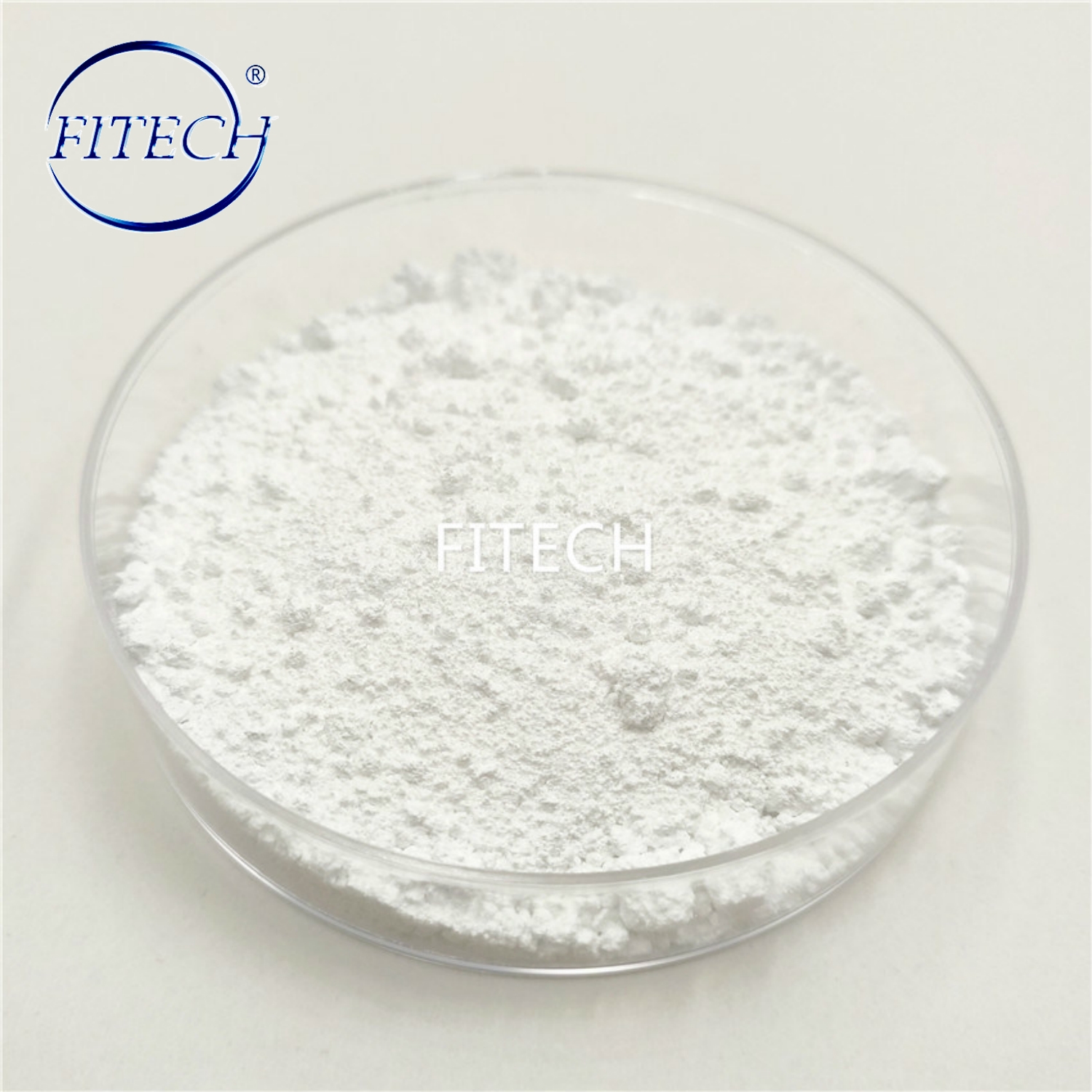

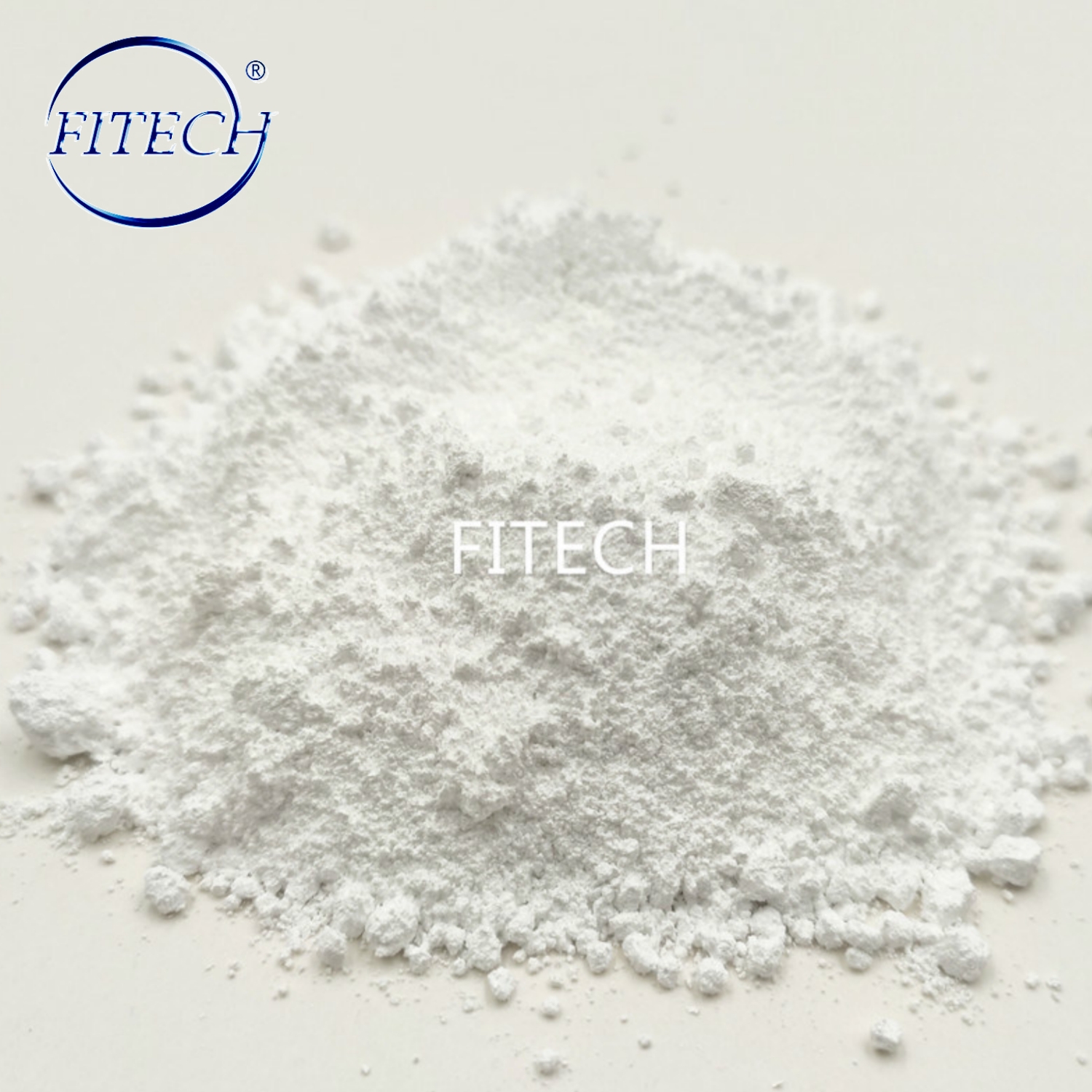

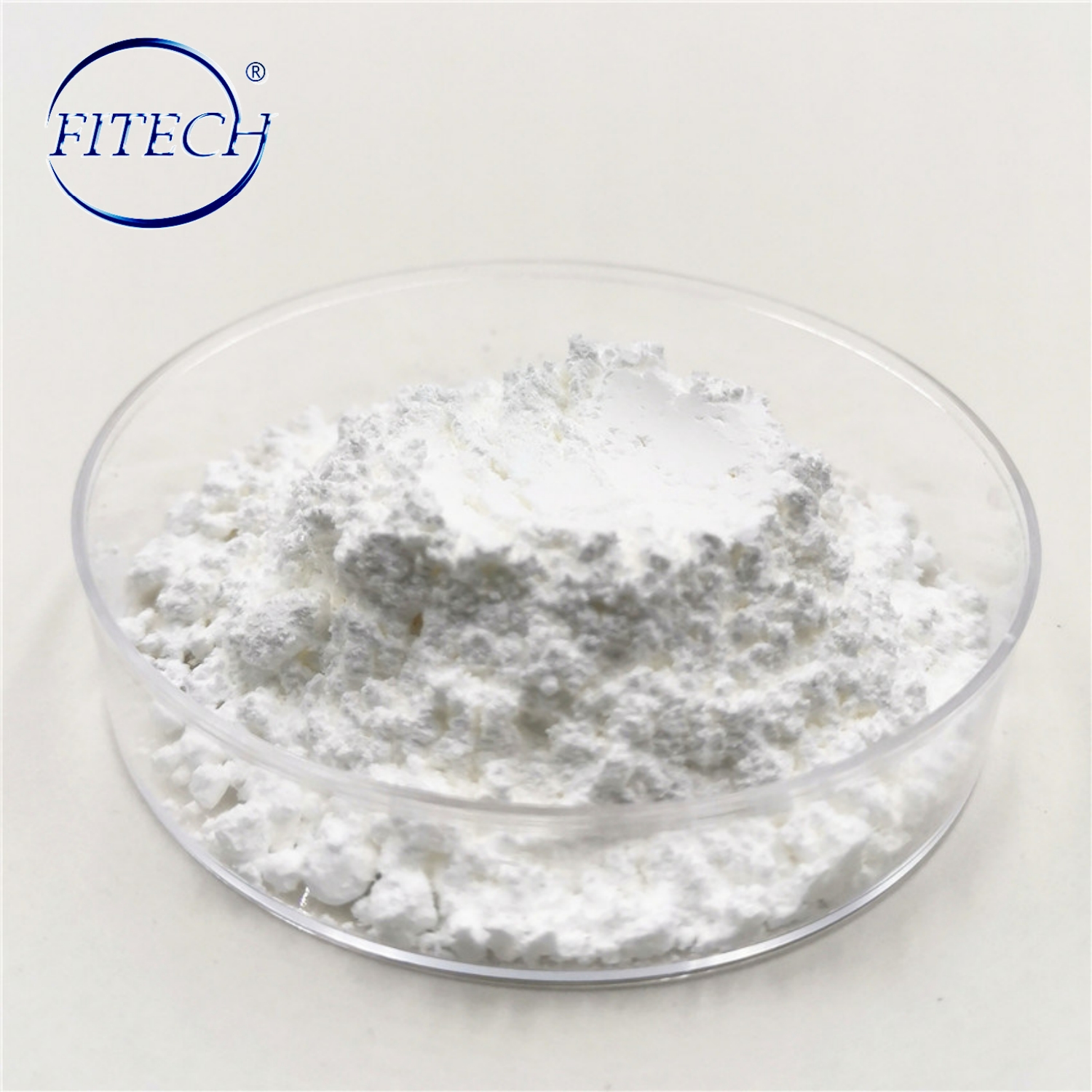

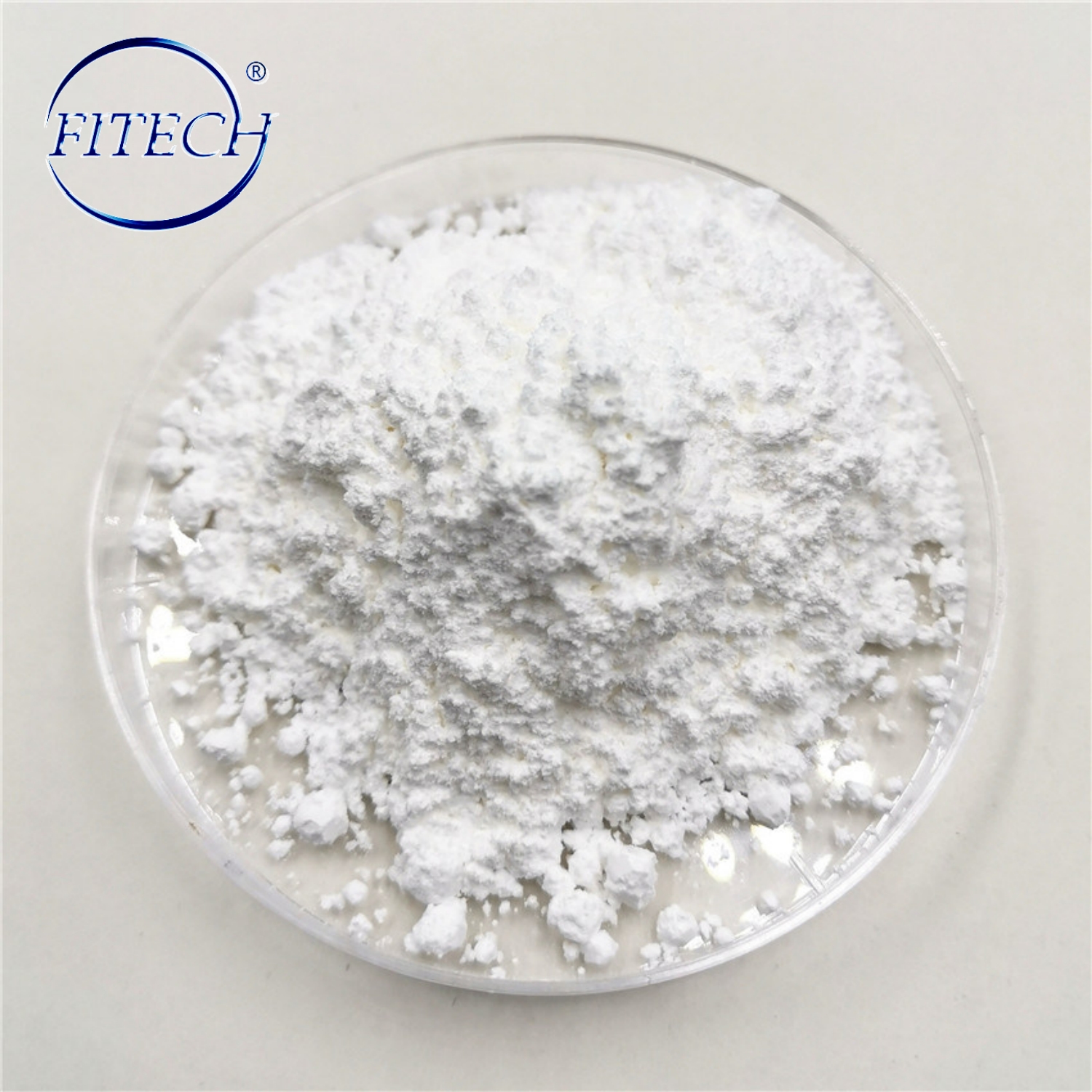

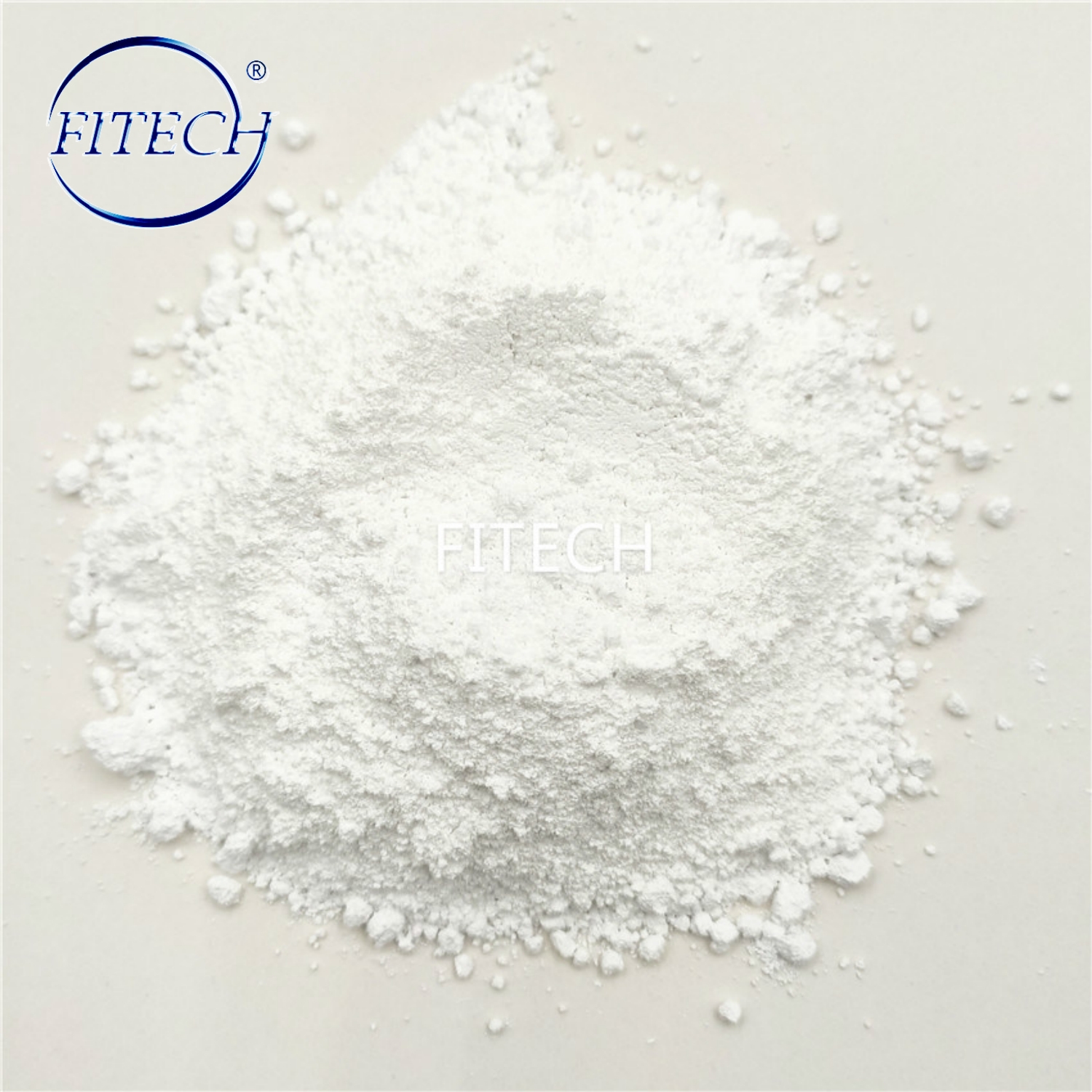

Factory Supply Fused Yttria Stabilized Zirconia CAS 1314-23-4
Basic information:
High thermal stability: YSZ can maintain the stability of its structure at high temperatures, so it is widely used in materials and equipment in high temperature environments, such as solid oxide fuel cells (SOFC) and solid oxide electrolytic cells (SOEC).
High ion conductivity: YSZ exhibits good ion conductivity, making it an electrolyte material in solid oxide fuel cells, which facilitates the transport of ions in the electrolyte.
Excellent chemical stability: YSZ has a high resistance to chemical corrosion, making it a stable structural material.
Mechanical properties: YSZ has good mechanical strength and hardness and is suitable for applications requiring high wear resistance and compressive properties.
Specification
| Chemical composition( % ) | Stabilization rate ( % ) |
Density (g/cm3) |
||||||
| ZrO2 | Y2O3 | SiO2 | Al2O3 | Fe2O3 | TiO2 | CaO | ||
| >93 | 4.8-5.5 | <0.4 | ≤0.3 | ≤0.1 | ≤0.2 | ≤0.2 | >50 | >5.7 |
| ≥90 | 7.0-8.0 | ≤0.2 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.2 | 75-85 | >5.8 |
| ≥90 | 7.0-8.0 | ≤0.2 | ≤0.3 | ≤0.1 | ≤0.2 | ≤0.2 | 75-85 | >5.8 |
| ≥90 | 6.0-8.0 | ≤0.4 | ≤0.3 | ≤0.15 | ≤0.2 | ≤0.6 | 70-90 | >5.8 |
| ≥90 | 7.0-8.0 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | >95 | >5.8 |
| ≥90 | 7.0-8.0 | ≤0.3 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.5 | >95 | >5.8 |
| ≥88 | 8.8-9.8 | ≤0.4 | <0.2 | ≤0.1 | ≤0.2 | ≤0.2 | >95 | >5.8 |
| ≥84 | 13-14 | ≤0.3 | <0.2 | ≤0.1 | ≤0.2 | ≤0.2 | 100 | >5.8 |
| ≥81 | 15-17 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | 100 | >5.8 |
| ≥77 | 19-21 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | 100 | >5.7 |
| ≥49 | 47-49 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | 100 | >5.4 |
Application:
Wide range of applications: YSZ is widely used in the energy sector, such as solid oxide fuel cells, solid oxide electrolytic cells, and as a bioceramic material in some medical fields.
In general, electromelted yttrium stabilized zirconia has attracted much attention due to its high temperature stability, ionic conductivity, and potential applications in the energy and medical fields.
Certificate
The products have been approved by FDA,REACH,ROSH,ISO and other certification, in line with national standards.
Advantage
Quality First
Competitive Price
First-class Production Line
Factory Origin
Customized Services
Factory
Packing
1kg/ bag; 25kg/ barrel;
20 tons/1×20‘FCL Shipment.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
