99.9% Purity 30nm Nano Grade Zirconium Oxide Used in Battery Material
Basic information:

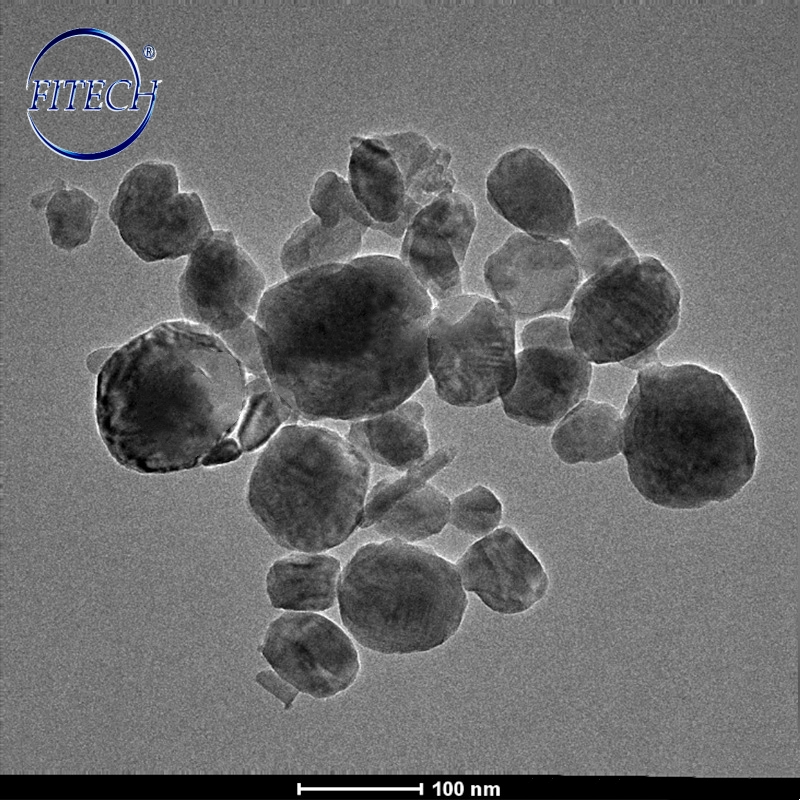

Nano zirconia powder for battery has fine size and uniform particle size distribution. Using the conductive properties of different elements doped with this product, it can be used in electrode manufacturing in solid state batteries.
The nano-zirconia battery consists of a solid zirconia electrolyte (mostly yttrium stabilized zirconia powder, referred to as YSZ) and two platinum electrodes. As a kind of electrolyte, yttrium stabilized nano-zirconia powder has been applied in the field of solid oxide fuel cells because of its high oxygen ion conductivity and stability in REDOX atmosphere. It has market application prospect and commercial value.
Specification
|
Model |
ZY-VK-R30D |
|
Crystal Form |
monoclinic phase |
|
Particle size |
30nm |
|
ZrO2% |
99.9 |
|
Al2O3% ≤ |
0.005 |
|
SiO2%≤ |
0.005 |
|
Fe2O3%≤ |
0.005 |
|
CaO%≤ |
0.005 |
|
surface treating agent |
Special activator for batteries |
Application:
1, battery special nano zirconia (YSZ) is widely used in the production of solid oxide fuel cells (SOFC), oxygen sensors and microelectronics.
2, battery specialized nano zirconia has oxygen ion conductivity, mechanical properties and good REDOX stability under high temperature conditions.
3, the battery special nano zirconia covered or dispersed on the surface of the alloy can also produce active element effect, improve the high-temperature oxidation resistance of the alloy and greatly improve the adhesion of the oxide film.
4, as an electrolyte, the battery dedicated as an electrolyte has been applied to solid oxide fuel cells. Used to transfer the oxygen ions produced by the reaction, at a high temperature of 800 to 1000 degrees Celsius, the ions can permeate the ceramic material.
5, nano-zirconia is currently used more electrolyte materials,YSZ structure and performance stability is more important for the reliability of solid oxide fuel cell system.
6, the zirconia concentration battery type oxygen detector made of nanometer zirconia special for batteries can extend the service life of the product, improve the accuracy and reduce the maintenance.
Addition amount: 0.5-10%
Certificate
The products have been approved by FDA,REACH,ROSH,ISO and other certification, in line with national standards.
Advantage
Quality First
Competitive Price
First-class Production Line
Factory Origin
Customized Services
Factory
Packing
1kg/ bag; 25kg/ barrel;
20 tons/1×20‘FCL Shipment.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
